Problem ID: 43
Problem Filename: cktels_resistorCode_ex1
Keywords:
Circut Description:
- Resistor
Analysis Method:
- Color Code Chart
Math Method:
- Algebra
Circuit Elements
Resistor Color Codes
Problem #1

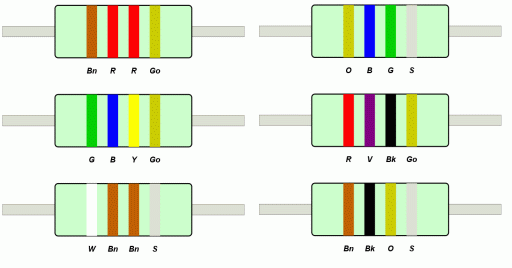

Read the resistor color codes to determine their values and tolerances. Report the values using engineering prefix notation, i.e., ohms, kilo-ohms, or mega-ohms.
Need a hint?
Rember that the first two color bands represent the first two numbers of the resistance. The third band gives the resistance's magnitude: it's the exponent of our x10 multiplier. The fourth band gives the tolerance.
