Problem ID: 78
Problem Filename: srcTrans_ex6
Keywords:
Circut Description:
- Independent Current Source
- Independent Voltage Source
- Resistor
Analysis Method:
- Source Transformations
- Parallel Resistor and Current Source Combinations
Math Method:
- Algebra
Source Transformations
Multiple Sources
Problem #6

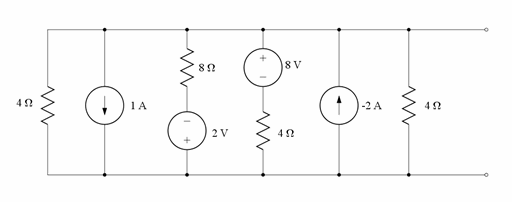

Use repeated source transformations to convert this circuit into Norton form.
Need a hint?
Convert the voltage sources into current sources. Combine the parallel current sources and resistors to find the Norton form.
