Problem ID: 42
Problem Filename: srcTrans_res_ex3
Keywords:
Circut Description:
- independent voltage source
- resistor
Analysis Method:
- source transformation
Math Method:
- algebra
Source Transformations
Single Source
Problem #3

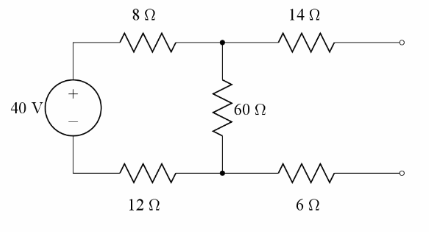

Use repeated source transformations to convert this circuit into Thèvenin form.
Need a hint?
Combine all resistors in series with 40-V source into one equivalent resistance, then use a source transformation to convert to a current source.
