Problem ID: 13
Problem Filename: rlc_InitialConds_ex1
Keywords:
Circut Description:
- Inductor
- Capacitor
- Step Response
- RLC
- Voltage Source
- Dual Voltage Source
Analysis Method:
- First Order Response
Math Method:
- differential equation
Second Order (RLC)
Initial Conditions
Problem #1

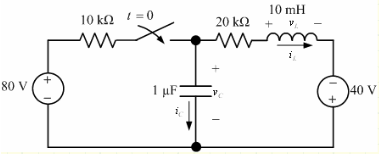

For the circuit shown below, the switch has been opened for a long time and it is closes at t=0. Determine the initial values of the inductor and capacitor voltages and currents: iL(0+), vL(0+), iC(0+), and vC(0+).
Need a hint?
Find initial conditions and analyze circuit in each state to derive first order linear equations.
