Keywords:
Second Order (RLC)
Initial Value and Final Value
Problem #3

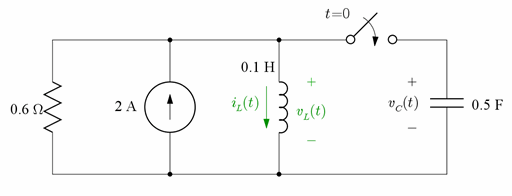

For both the inductor current and voltage, determine their initial values, the initial values of their derivatives, and their final values. The capacitor has 9 J of stored energy before the switch closes.
