Problem ID: 26
Problem Filename: firstOrder_rcSequential_ex1
Keywords:
Circut Description:
- independent voltage source
- capacitor
- resistor
- switch
- natural response
- step response
- independent current source
Analysis Method:
- transient response
Math Method:
- differential equation
First Order
RC Sequential Response
Problem #1

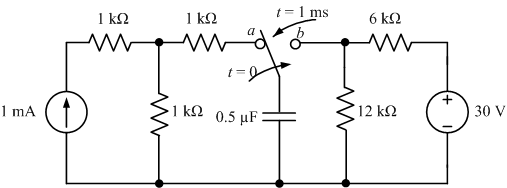

At t=0 the switch is flipped to position (b) after being in position (a) for a long time. After 1ms it moves back to position (a). Find the capacitor voltage as a function of time t.
Need a hint?
Find initial conditions and write transient equations for each switch state.
