Keywords:
Phasors
Mesh Analysis
Problem #5

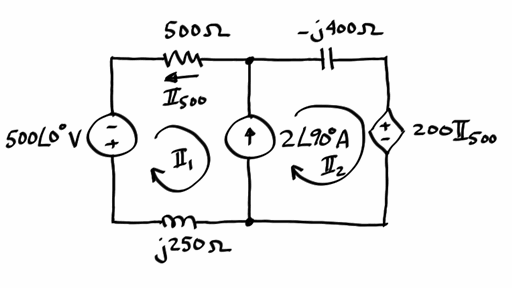

Find the indicated mesh currents.
Need a hint?
Write the mesh current equations in terms of I1 and I2, then write I500 in terms of the defined mesh currents.
|
