Find the cutoff frequency of the filter. Use voltage divider to derive the transfer function. Obtain the output voltage in s.s.s when the input voltage is Vin=1cos(100t) V and Vin=1cos(10,000t+90°) V.

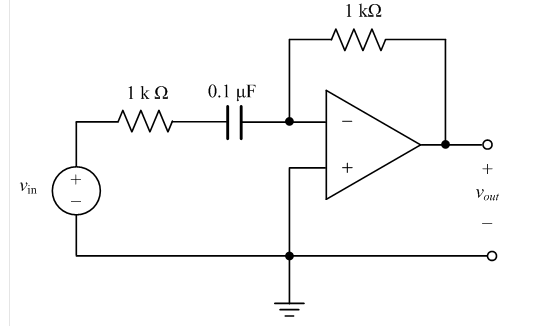

diagram
Need a hint?

solution

Check your result

Additional files available

Video Transcript
