Keywords:
Circuit Elements
Equivalent Impedance/Admittance
Problem #4

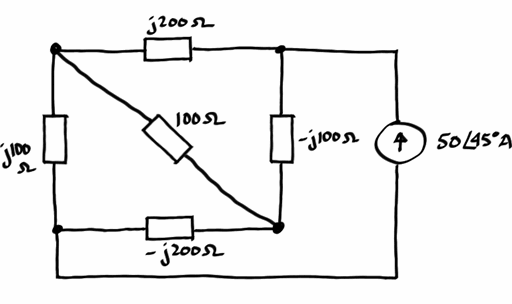

Find the equivalent admittance seen by the current source.
Need a hint?
Consider using the Δ-Y transformation.
|
