Listen to each of the signals again by clicking on the waveform.

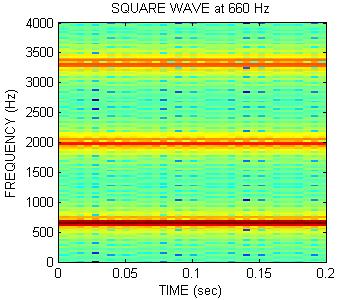

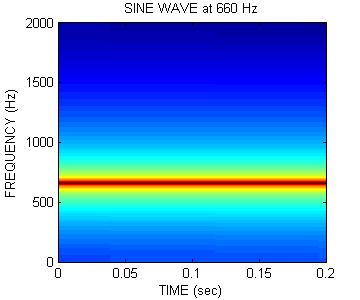

sinef.jpg squaref.jpg

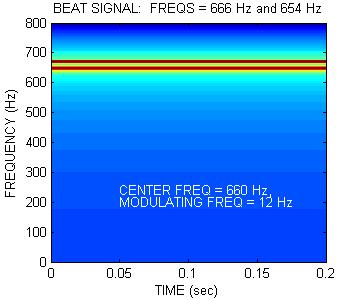

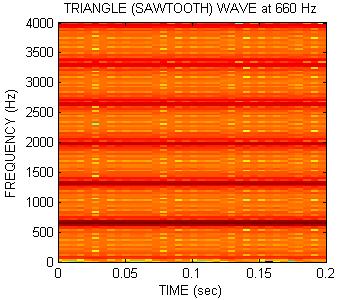

sawf.jpg beatsf.jpg

Do they sound like they are the same note (pitch) ? (they should)

Do you hear a connection between the sound and the wave? (I don't)

Maybe the time domain waveform isn't that best way to get such a connection.


MATLAB

These were generated with MATLAB. Click here to see the code.
Go back up a level to continue.
