Power
Maximum Power Tranfer
Problem #2

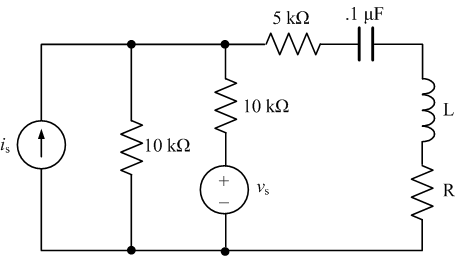

Determine settings of R and L that will result in the maximum average power transferred to R if is = 1 cos(1000t) mA and vs = 30 cos(1000t+30°) V. What is the maximum average power transferred to R?
Need a hint?
Determine the Thévenin equivalent with respect to the load impedance first. Set the load impedance equal to the conjugate of the Thévenin equivalent impedance to obtain maximum power transferred to the load resistor.
