Keywords:
Frequency Response
Lowpass Filter
Problem #1

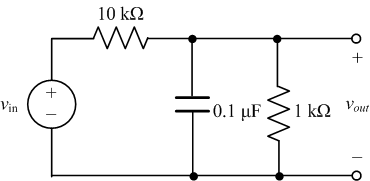

Find the transfer function H(jω)=Vout/Vin. What type of filter is it?
Need a hint?
Use voltage divider to find the transfer function.
|
November 23, 2024
|
