Keywords:
Frequency Response
Active Filter

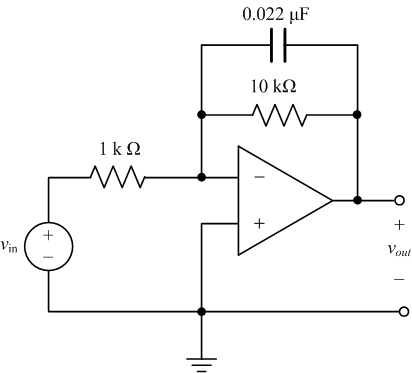

Problem #1
a) Find the transfer function H(jω)=Vout/Vin
b) At what frequency will the magnitude of H(jω) be maximum and what is the maximum value of the magnitude of H(jω)?
c) At what frequency will the magnitude of H(jω) be minimum and what is the minimum value of the magnitude of H(jω)?
Need a hint?
Write a KCL equation at the inverting input node of the op-amp to derive the transfer function.
