Two-Port Networks
Impedance Parameters
Problem #2

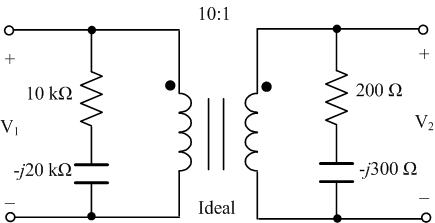

Find the z parameters of the two-ports.
Need a hint?
Set I2=0 to find z11 and z21 . z12 and z22 can be found by setting I1=0.
|
