Problem ID: 32
Problem Filename: firstOrder_rlInitialCond_ex2
Keywords:
Circut Description:
- independent current source
- resistor
- inductor
- switch
- initial conditions
- transient response
Analysis Method:
- transient response
Math Method:
- differential equation
First Order
RL Initial Conditions
Problem #2

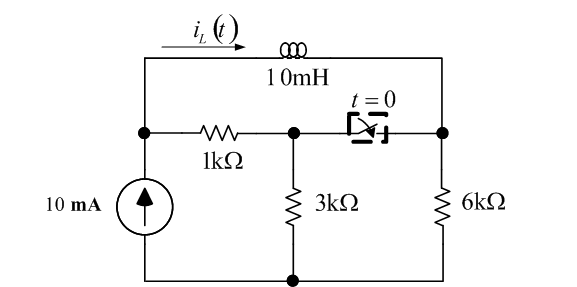

Assume the switch in the circuit below has been open for a long time, find the expression for the inductor current iL(t) after the switch closes.
Need a hint?
Develop the transient response to a DC source, then find initial and final conditions.
