Keywords:
Balanced Three-Phase
Power
Problem #1

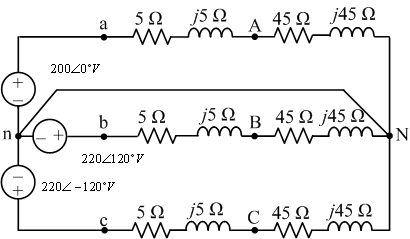

An ideal balanced three-phase Y-connected generator with negative sequence is connected with a balanced three-phase-Wye-connected load. Calculate the total average power delivered to the Y-connected load. Calculate the total reactive power absorbed by the load.
Need a hint?
Construct a single phase equivalent circuit. Find the load voltage and current. The single phase power can be calculated based on the load voltage and current. The total power is three times of the single phase power.
