Two-Port Networks
Impedance Parameters
Problem #1

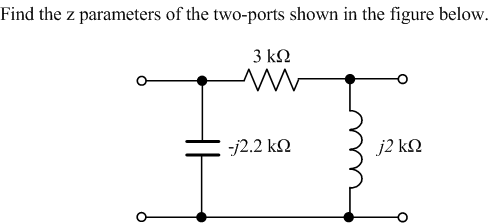

Find the z parameters of the two-ports.
Need a hint?
Set I2=0 to find z11 and z21 . The circuit is reciprocal so that z12 =z21 . z22 can be found by setting I1=0.
