Keywords:
Power
Maximum Power Tranfer
Problem #1

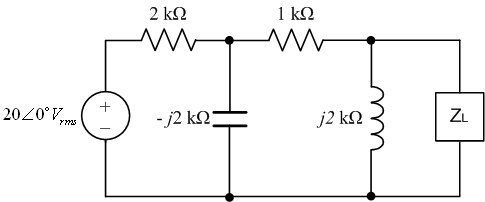

Determine the impedance ZL that results in the maximum average power transferred to ZL. What is the maximum average power transferred to the load impedance?
Need a hint?
Determine the Th�venin equivalent with respect to the load impedance first. Set the load impedance equal to the conjugate of the Th�venin equivalent impedance to obtain maximum power transferred to the load impedance.
