Keywords:
Power
Average Power
Problem #1

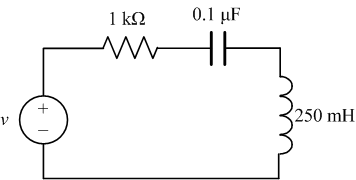

Find the average power absorbed by resistor, inductor and the capacitor in the circuit if v = 4 cos (2000t) V.
Need a hint?
Find the voltage and current through each of the elements in the circuit. The average power can be calculated based on the amplitude and the phase angle of the voltage and those of the current.
