Keywords:
Power
Complex Power
Problem #1

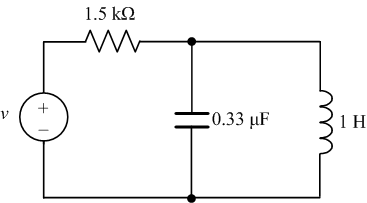

Find the average power, the reactive power and the complex power delivered by the voltage source if v = 6 cos (1000t) V.
Need a hint?
Find current driven by the voltage source first. The average power and the reactive power can be calculated based on the amplitude and the phase angle of the voltage and those of the current.
