View All : Main > Topics > AC Circuits > Phasors > Nodal Analysis > Problem #5
Keywords:

Phasors

Nodal Analysis

Problem #5

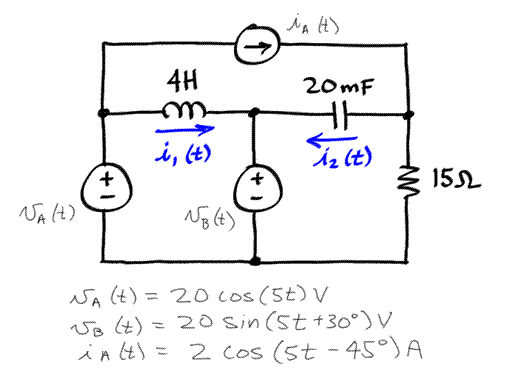

Find the indicated currents expressed as cosine functions. Use the node voltage analysis method first.

diagram
Need a hint?

solution

Check your result

Additional files available

Video Transcript
