Phasors
Nodal Analysis
Problem #4

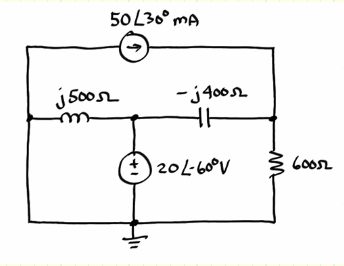

Find all of the node voltages in the circuit.
Need a hint?
Grounded voltage sources reduce the number of equations you need to write.
|
