Phasors

Source Transformations

Problem #1

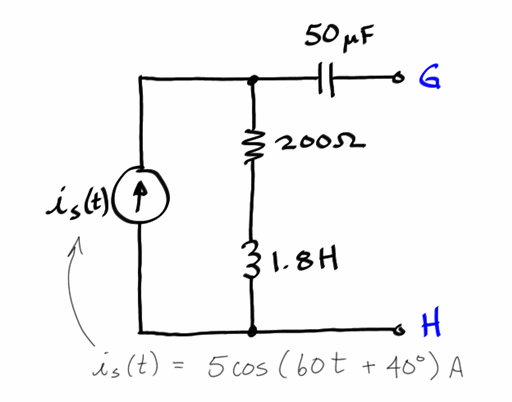

Apply repeated source transformations to reduce this to an equivalent circuit at the terminals G-H. The simplified circuit will consist of a voltage source in series with two series-connected passive elements.

diagram
Need a hint?

solution

Check your result

Additional files available

Video Transcript
