Keywords:
Phasors
Norton Equivalents
Problem #2

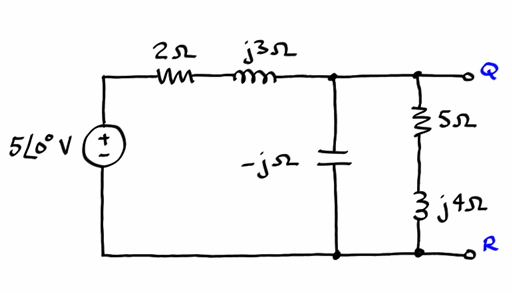

Find the Norton equivalent circuit at the terminals Q-R. Express all complex values in your answer in both rectangular and polar form.
Need a hint?
If the circuit contains no dependent sources, use the "lookback impedance" method.
