Frequency Response
Third-Order Lowpass Filter
Problem #1

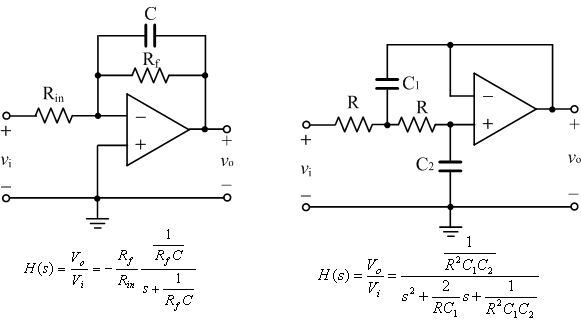

Use the prototype circuits shown below to design a third-order lowpass Butterworth filter that will have a passband gain of 10 dB and a cutoff frequency of 4 kHz.
Need a hint?
Design a prototype third-order filter with a cutoff frequency of 1rad/s and then scale the circuit to meet the design specification.
