Frequency Response
Second-Order Bandreject Filter
Problem #1

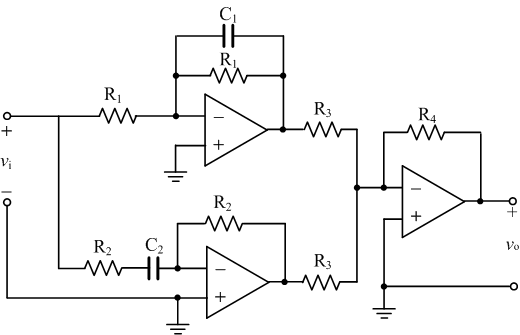

Use the circuit shown below to design a bandreject filter with a center frequency of 100 krad/s and a bandwidth of 10 Mrad/s, and a pass band gain of 10. Use 1 nF capacitors and specify all resistor values.
Need a hint?
Find the transfer function of the template filter circuit and then match the parameters of the filter with those given in the design specification.
