Problem #2

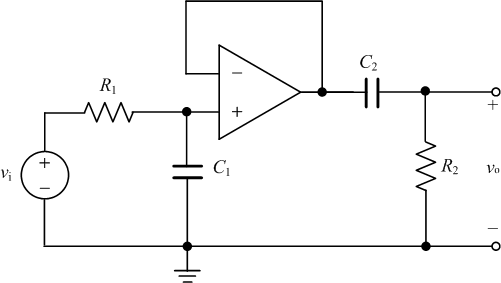

Find the transfer function for H(s)=Vo/Vi.
Need a hint?
Label all the node voltages and write KCL equations to derive the transfer function.
|
