Frequency Response
Bandpass Filter
Problem #1

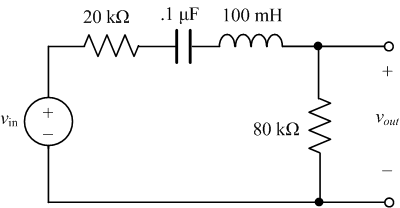

Find ω0, ωc1, ωc2, Q and β
Need a hint?
Use a voltage divider to derive the transfer function.
