Problem #6

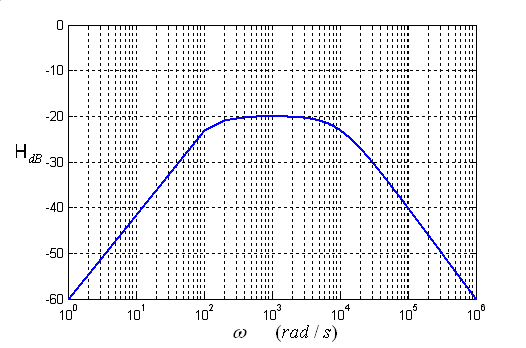

Obtain the transfer function H(jω) corresponding to the Bode magnitude diagram shown in the figure below.
Need a hint?
The transfer function consists of a constant gain, a zero at the origin and two simple poles.
