Problem #4

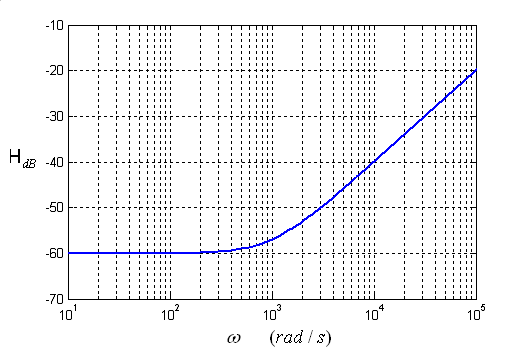

Obtain the transfer function H(jω) corresponding to the Bode magnitude diagram shown in the figure below.
Need a hint?
For small values of the frequency, the magnitude is approximately -60 dB. For high frequency range, it is approximately a straight line with a slope of 20dB/dec. The transfer function consists of a simple zero and a constant gain.
