Problem #3

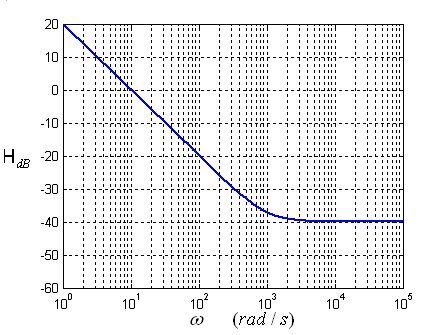

Obtain the transfer function H(jω) corresponding to the Bode magnitude diagram shown in the figure below.
Need a hint?
For small values of the frequency, the plot is an approximately a straight line with a slope of -20 dB/dec. So the transfer function has a factor of pole at the origin. A simple zero is located at 1000 rad/s because the curve goes upwards by 20 dB/dec at 100 rad/s.
