Frequency Response
Bode Plots
Problem #2

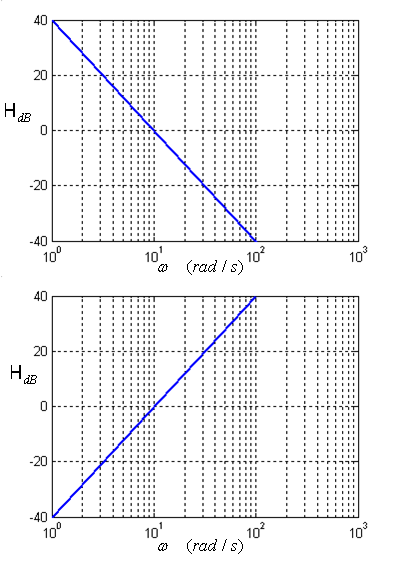

Obtain the transfer function H(jω) corresponding to the Bode magnitude diagrams shown in the following figures.
Need a hint?
In the first figure, the Bode magnitude plot is a straight line with a slope of -40 dB/dec. So there are two identical poles at the origin in the transfer function. The Bode magnitude plot of the second figure is a straight line with a slope of 40 dB/dec. So the transfer function has a factor of double zeros at the origin.
