Frequency Response
Bode Plots
Problem #1

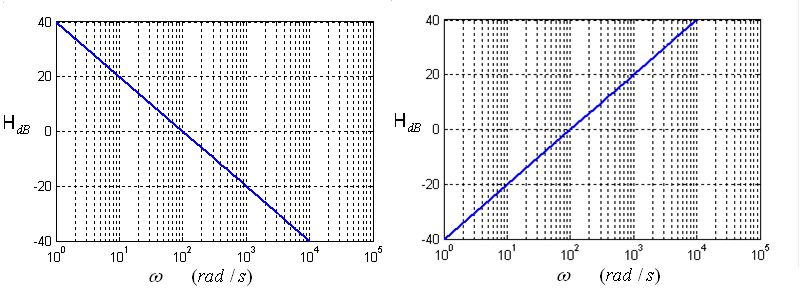

Obtain the transfer function H(jω) corresponding to the Bode magnitude diagrams shown in the figures.
Need a hint?
In the first figure, the Bode magnitude plot is a straight line with a slope of -20 dB/dec. So there is a pole at the origin in the transfer function. The Bode magnitude plot of the second figure is a straight line with a slope of 20 dB/dec. So one of the factors in the transfer function is a zero at the origin.
