Keywords:
Frequency Response
Second-Order Bandpass Filter
Problem #2
Design a second order bandpass filter with cutoff frequencies of 100 Hz and 100 kHz and a passband gain of 10.
Need a hint?

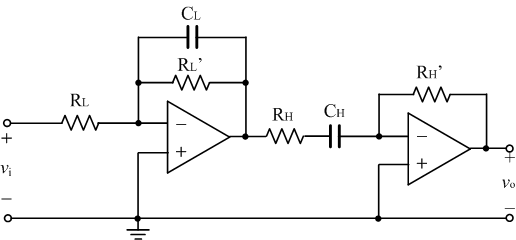

Design the circuit with a cascaded bandpass filter. Cascade a first-order lowpass filter with a first-order highpass filter. The cutoff frequency of the lowpass filter should be 100 kHz and that of the highpass should be 100Hz.
