Keywords:
Circuit Elements
Equivalent Impedance/Admittance
Problem #2

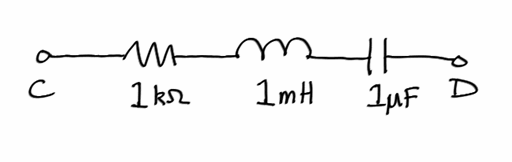

Determine the equivalent impedance between the terminals C-D when the circuit operates at each of the following frequencies: 0 Hz (DC), 503 Hz, 5.03 kHz, 50.3 kHz, and ∞Hz (extremely high frequency).
Need a hint?
Convert the circuit to its phasor-domain equivalent, then treat each element as a resistor whose value is a complex number.
