Keywords:
Math Method:
- Complex Arithmetic
Circuit Elements
Equivalent Impedance/Admittance
Problem #1

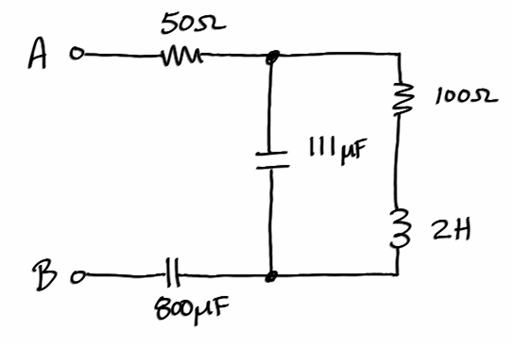

Determine the equivalent impedance at the terminals A-B when the circuit operates at a frequency of 50 rad/s.
Need a hint?
Convert the circuit to its phasor-domain equivalent, then treat each element as a resistor whose value is a complex number.
