28A2736-0A2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

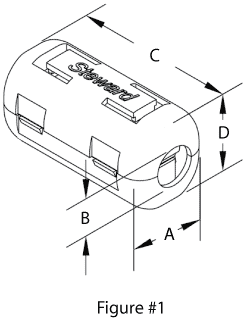

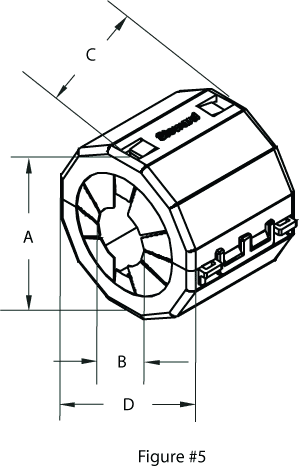

Drawing Figure # |
| Figure Number |
| 1 |
|
Electrical Characteristics |

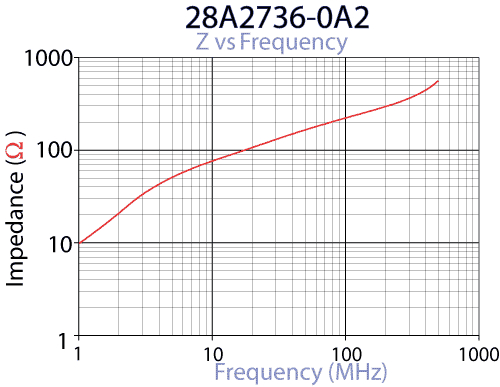

| Typical Z Ohms @ 25 MHz |
Nominal Z Ohms @ 100 MHz |
Typical Z Ohms @ 300 MHz |
| 120 | 220 | 360 |
|
Physical Dimensions |
| Case A mm |
Case A1 mm |
Case B mm |
Case C mm |
Case C1 mm |
Case D mm |
Case E mm |
Maximum Cable Diameter mm |
Maximum Cable Diameter inches |
| 19.70 | - | 9.00 | 35.10 | - | 18.00 | - | 9.00 | 0.354 |
 |
| Specifications, which provide more details for the correct use of the described products, are available upon request. All specifications are subject to change without notice. For more information on any of the products listed above, please contact Steward customer service department at (800) 634-2673. |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
