Pipes

Learning Objectives

At the end of this lecture, you should be able to:

  • Define pipes and the way they are implemented in the OS.
  • Use pipes to allow for exchange of information between processes.

Topics

In this lecture, we will cover the following topics:

  • Unix pipes.

Notes

Motivation

  • By default, processes are isolated from one another. One process cannot read data that is in another process’s address space.
    • :question: Why would we want to do that?
  • As much as we would like processes to be completed isolated, we must allow them some forms of communication.
    • :question: If you were designing your OS now, how would you implement inter-process communication?
  • So far, we have seen one way for processes to communicate with each other, and that is through using signals.
    • However, signals cannot carry too much information, only notifications.

Pipes

  • Pipes are in-memory files that allow for data communication between related processes in a first-in-first-out fashion.
  • In fact, processes can communicate without even knowing who is on the other end of the pipe.
    • Kind of like a tunnel where someone is shouting on the other end, you can hear them but you cannot really know who they are.
  • In this class, we will focus on unnamed pipes, named pipes are beyond what we will cover here.

  • Definition: A pipe is a unidrectional channel of communication between two or more processes that share an ancestor that has set up a pipe.
    • All descendants of that ancestor will share access to that pipe. pipe

Implementation

  • Behind the scenes, the operating system implements a pipe as a virtual file in memory.
    • In other words, the file does not exist on the disk, and after it is closed, its content are lost.
  • The process wishing to communicate will maintain file pointers to that in-memory file, typically using file descriptors represented by integers.
    • Similar to what we get when we open a file in Linux using fd = open(...).

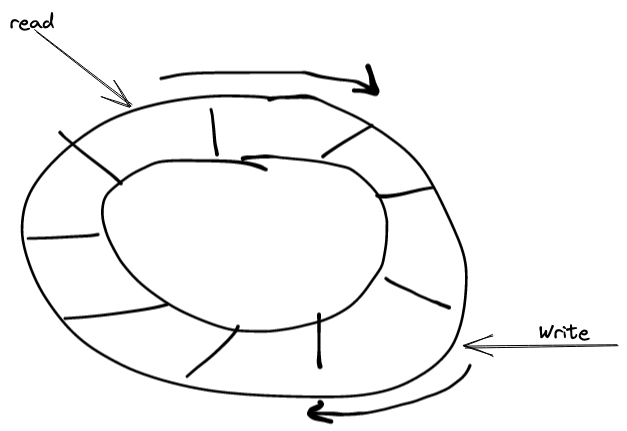

  • A pipe’s in-memory file is implemented as a circular array of characters.
    • The pipe file’s data structure maintains two pointers:
      1. A read pointer from which to read the next character.
      2. A write pointer where to write the next character. ca

Usage

  • To create a pipe, a process can use the pipe() function that takes as argument an array of two integers.
    • The first element of that array will be the reading end of the pipe.
    • The second element of that array will be the writing end of the pipe.
  • To read or write to a pipe, you can use the appropriate read and write system calls using the corresponding end of the pipe.

Example

  • Here is an example of creating a pipe and reading/writing data to it.
    int fd[2];
    pipe(fd);

    if(fork() == 0) {
      /* this child is the writer, so it must close the reading end */
      close(fd[0]);

      const char *msg = "hello world!";
      write(fd[1], msg, strlen(msg));
      close(fd[1]);
      exit(0);
    } else {
      /* the parent is the reader, so it must close the writing end */
      close(fd[1]);

      char buff[512];
      if(read(fd[0], buff, 512) > 0) {
        printf("Read %s from pipe\n", buff);
      }
      close(fd[0]);
    }


Edge Cases

  • There are 4 cases that might arise when dealing with a pipe:
    1. Reading from a pipe that has enough data in it:
      • All is well and everything is good.
    2. Writing to a pipe that has enough space in it:
      • All is well and everything is good.
    3. Reading from an empty pipe, the calling process will sleep until one of the following conditions happen:
      • Someone writes to the pipe, then read returns the number of bytes read.
      • All writing ends are closed, and then read returns 0.
    4. Writing to a full pipe, the calling process will sleep until:
      Someone reads from the pipe and then there is enough room in the pipe.
      • All reading ends are closed, the kernel will send the process the SIGPIPE signal (though this behavior can be overridden).
