Design Document
Team 9 - Calculus Review Website
Steve Hoelle, Tim Jasko, Chris Scribner
January
28, 2003 through April 7, 2003
This document is not yet finished. Certain design decisions must still be
made before complete details can be described. The unfinished sections have the
template information for our editing purposes.
If you add or change anything in this document, please note it in the Revision History near the end, along with incrementing the version number in the filename of the document.
Estimated finishing time is March, but no sooner than when we have pinned down the server details, and finalized the site functionality.
Table of Contents
- Design Approach
- Similar and Supporting Work
- System Architecture
- User Interface
- Data Storage/Format
- External System Interfaces
- Detailed Design
- Implementation Platform
- Reference Materials
- To Do List
- Requirements Issues List
- Team Request Forms
- Cross-Reference Table
- Revision History
Design Approach
We have chosen to design the project as a forum system, with an info thread, a help thread, and a question pool associated with each topic. No alternatives to this design have been discussed. The advantage of using this approach is the relative simplicity in developing it, using it, and maintaining it.
Similar and Supporting Work
Forums are an incredibly common way of organizing information and providing a means for people to ask and answer questions. They are easy to understand, easy to maintain, and give a solid base for the foundation of an online community. The major drawback of a forum is moderation, because the hosts can be held liable for what users post on the system; our forum, however, leaves no anonymity to the poster, as they must log in with their RHIT username, so offensive or illegal content should be at a minimum, and the expected low traffic will mean the math faculty can keep up with scanning all new material in case moderation is still necessary.
Perhaps the most relevant similar work can be found at www.mathforum.org, a plain-text forum addressing most every math subject, from K-12, to Undergraduate and Graduate level mathematics.
System Architecture
Software and External Interacting Entitles
Software Architecture
Supplemental data flow information:
- Username / password to be added to the UP database
- Username to be removed from the UP database
- Search expression and search results
- Relays requests to and from topic editor submodules
- Name of topic to be removed
- Updated topic text
- Name of topic to be added
- Relays requests to and from problem editor submodules
- Name of problem to be removed
- Updated problem text, name of problem to edit
- Name of problem to be added, the problem itself
- Username and password
- Relays requests to and from the post editor submodules
- Updated post text, name of post to edit
- Post text
- Name of post to delete
User Interface

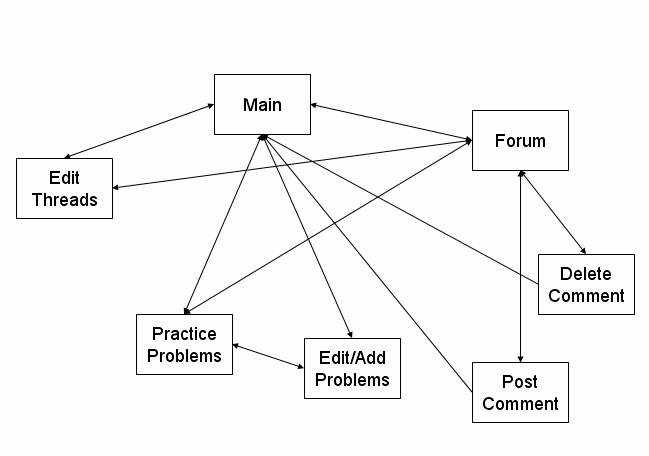

1000 Relationship Diagram
1100 Display Screen Formats, Menus, and Fault Handling
1100.01 Display
· Main Page - allows user to navigate to topic and help thread threads, and select practice problems.
· Forum Page - allows the user to view the contents of a given thread and navigate to subtopics in the thread.
· Practice Problems Page - displays practice problems, then answers.
· Post Comment Page - allows the user to add a comment to a topic thread.
Display Components
<Bulleted list of component descriptions including format of inputs and outputs.>
· Topic Tree - displays the topics available to read.
o Input: thread to be read
o Output: contents of the thread
· Display Practice Problems - displays the practice problems
o Input: thread problems are associated with and the number of problems to display
o Output: the practice problems
· Practice Problems Solutions - displays answers to the practice problems
o Input: the practice problem
o Output: the solution
· Post Comment - allows the user to post a comment to a thread
o Input: the comment to be posted
o Output: the comment is posted to the thread
·
Forum
View - displays the comments attached to a thread
o
Input: the thread
o
Output: displays the comments
Error Handling
<Bulleted list of errors that can occur with the screen and how they are handled. If error displays are shown, make a cross-reference to them in this document, do not show them again.>
· Unable to post comment - error message displayed, then user redirected to forum view
· Thread does not exist - error message displayed
· Practice problem does not exists - error message displayed
1401 Human Interfaces
The user will interact with the system through Internet Explorer. All viable ways to communicate with that software are viable here, i.e. mouse, keyboard, etc.
1401.1 Cursor device
A mouse or something equivalent that the user can control the cursor with.
1401.2 Text input device
A keyboard or something equivalent that the user can enter text into text fields with..
Data Storage/Format
2100 Data Structures
None.
2200 Files
None.
2300 Databases
2301 calcreview
2301.01 Topics
- Related Tables
- Comments
- Help
- Problems
- Columns
- id - serial, uniquely identifies the topic
- parent - int4, id of the parent topic. -1 for top-level topics
- title - varchar(200), topic title
2301.02 Comments
- Related Tables
- Topics
- Columns
- id - serial, uniquely identifies the comment
- topic - int4, id of the topic this comment is associated with
- username - varchar, username of the poster
- date - timestamp, time the comment was posted
- body - varchar, body of the comment
2301.03 Help
- Related Tables
- Topics
- Columns
- id - serial, uniquely identifies the comment
- topic - int4, id of the topic this comment is associated with
- username - varchar, username of the poster
- date - timestamp, time the comment was posted
- body - varchar, body of the comment
2301.04 Problems
- Related Tables
- Topics
- Columns
- id - serial, uniquely identifies the comment
- topic - int4, id of the topic this comment is associated with
- problem - varchar, The practice problem to be solved
- answer - varchar, The solution to the problem
2301.05 Admins
- Columns
- username - varchar, username of the admin
External System Interfaces
None present.
Detailed Design
Module Descriptions
4001 Comment Editor
4001.0001 Delete Comment
- Module Name: Delete Comment
- Module Type: function, returns boolean
- Arguments: comment ID : string
- Error Messages: Comment ID not found
- Database Accessed: Forum Database
- Database Changed: Forum Database
- Modules Called: none
- Narrative: Deletes a comment from a forum thread when an admin clicks the “delete” button on a post. Returns true if the delete operation is successful, false otherwise.
4001.0002 Add Comment
- Module Name: Post Comment
- Module Type: function, returns boolean
- Arguments: comment text : string, username : string
- Error Messages: Comment too long, contains invalid characters, user not logged in
- Database Accessed: Forum Database
- Database Changed: Forum Database
- Modules Called: none
- Narrative: Adds a comment to a forum thread. Returns true if the add operation is successful, false otherwise.
4001.0003 Edit Comment
- Module Name: Edit Comment
- Module Type: function, returns boolean
- Arguments: comment text : string, username : string
- Error Messages: Comment too long, contains invalid characters, user not logged in, comment does not exist
- Database Accessed: Forum Database
- Database Changed: Forum Database
- Modules Called: none
- Narrative: Edits a comment in a forum thread. Returns true if the edit operation is successful, false otherwise.
4002 Problem Editor
4002.0001 Add Problem
- Module Name: Add Problem
- Module Type: function, returns boolean
- Arguments: problem text : string, problem title : string, problem section : string
- Error Messages: Problem too long, contains invalid characters, user not logged in, problem already exists
- Database Accessed: TEP Database
- Database Changed: TEP Database
- Modules Called: none
- Narrative: Adds a problem to the database. Returns true if the add operation is successful, false otherwise.
4002.0002 Remove Problem
- Module Name: Remove Problem
- Module Type: function, returns boolean
- Arguments: problem title : string, problem section : string, problem section : string
- Error Messages: user not logged in, problem does not exist
- Database Accessed: TEP Database
- Database Changed: TEP Database
- Modules Called: none
- Narrative: Removes a problem from the database. Returns true if the remove operation is successful, false otherwise.
4002.0003 Edit Problem
- Module Name: Edit Problem
- Module Type: function, returns boolean
- Arguments: problem text : string, problem title : string, problem section : string
- Error Messages: user not logged in, problem does not exist, problem text too long, contains invalid characters
- Database Accessed: TEP Database
- Database Changed: TEP Database
- Modules Called: none
- Narrative: Edits a problem in the database. Returns true if the remove operation is successful, false otherwise.
4003 Topic Editor
4003.0001 Add Topic or Subtopic
- Module Name: Add Topic or Subtopic
- Module Type: function, returns boolean
- Arguments: topic name : string, topic section : string
- Error Messages: Topic name too long, contains invalid characters, user not logged in, topic already exists
- Database Accessed: TEP Database
- Database Changed: TEP Database
- Modules Called: none
- Narrative: Adds a topic to the hierarchy. Returns true if the add operation is successful, false otherwise.
4003.0002 Remove Topic or Subtopic
- Module Name: Remove Topic or Subtopic
- Module Type: function, returns boolean
- Arguments: topic name : string, topic section : string
- Error Messages: user not logged in, topic does not exist
- Database Accessed: TEP Database
- Database Changed: TEP Database
- Modules Called: none
- Narrative: Removes a topic from the database. Returns true if the remove operation is successful, false otherwise.
4003.0003 Edit Topic or Subtopic
- Module Name: Edit Topic or Subtopic
- Module Type: function, returns boolean
- Arguments: Topic name : string, topic section : string
- Error Messages: user not logged in, topic does not exist, topic text too long, contains invalid characters
- Database Accessed: TEP Database
- Database Changed: TEP Database
- Modules Called: none
- Narrative: Edits a topic title in the
database. Returns true if the
remove operation is successful, false otherwise.
4004 Login
- Module Name: Login
- Module Type: function, returns boolean
- Arguments: username : string, password : string
- Error Messages: username invalid, password invalid
- Database Accessed: UP Database
- Database Changed: None
- Modules Called: none
- Narrative: Allows a user to login so they may use
or administrate the system. Errors
on incorrect username or password, in which case it returns false.
4005 Topic Search
- Module Name: Topic Search
- Module Type: function, returns string
- Arguments: search expression : string
- Error Messages: invalid characters, user not logged in
- Database Accessed: TEP Database, Forum Database
- Database Changed: None
- Modules Called: none
- Narrative: Searches the TEP and Forum databases,
returning entries containing the search expression.
4006 Add Username
- Module Name: Add username
- Module Type: function, returns boolean
- Arguments: username : string, password : string
- Error Messages: invalid characters in username or password, username exists, invalid password
- Database Accessed: UP Database
- Database Changed: UP Database
- Modules Called: none
- Narrative: Adds a username to the database and assigns its password. Returns true if the operation is successful, false otherwise.
4007 Remove Username
- Module Name: Topic Search
- Module Type: function, returns boolean
- Arguments: username : string
- Error Messages: username does not exist, user not logged in
- Database Accessed: UP Database
- Database Changed: UP Database
- Modules Called: none
- Narrative: Removes a username and data for that
username to the database. Returns true if the operation is successful,
false otherwise.
Web Page Use Cases
Note: these use-cases are borrowed almost directly from the Use Cases deliverable. If changes are made here, please update the original.
Faculty Use Cases
Overview
This is the initial contact a person will have
with the system. He/she will be required to login so as to determine the rights
the person will have.
Preconditions - None.
Scenario
User
Action
System Reaction
Person connects to
site
System prompts user to login
Person enters username and password System validates user
Scenario Notes - None.
Post Conditions
User is now logged in with the appropriate rights, either as a student or
math faculty member.
Exceptions
If the login fails due to incorrect information,
the user will be prompted again.
Overview
This allows users to view a subject thread.
Preconditions
User is logged in.
Scenario
User
Action
System Reaction
User clicks the thread s/he wishes to
view Displays thread.
Scenario Notes - None.
Post Conditions - None.
Exceptions - None.
Overview
This allows faculty to add a post to a subject
thread.
Preconditions
User is logged in (with faculty rights).
Scenario
User
Action
System Reaction
User clicks the thread s/he wishes to write
on
Displays thread.
User clicks the Post Information button on the thread
System prompts user for the
information they wish to add.
Scenario Notes - None.
Post Conditions - None.
Exceptions - None.
Overview
This allows users to view a set of practice
problems.
Preconditions
User is logged in.
Scenario
User
Action
System Reaction
User clicks "Get Practice Problems"
link Displays
practice problems
Scenario Notes - None.
Post Conditions - None.
Exceptions
More practice problems are requested than exist. In this case, as many problems as are available will be shown.
Overview
This allows faculty to add a practice problem.
Preconditions
User is logged in (with faculty rights).
Scenario
User
Action
System Reaction
User clicks "Add Practice Problems"
link Prompts user for a
problem to add
Scenario Notes - None.
Post Conditions - None.
Exceptions - None.
Overview
This allows users to read posts on the help forum.
Preconditions
User is logged in.
Scenario
User
Action
System Reaction
User views the help
forum
System displays the help forum.
Scenario Notes - None.
Post Conditions - None.
Exceptions - None.
Overview
This allows faculty to answer cries for help on
the help forum.
Preconditions
User is logged in (with faculty rights).
Scenario
User
Action
System Reaction
User clicks "Ask for
Help"
Help form is displayed.
User enters help answer and submits.
Answer is
posted to forum
Scenario Notes - None.
Post Conditions
User post will be posted to the help forum.
Exceptions - None.
Overview
This allows faculty to modify subject content as
they see fit.
Preconditions
User is logged in (with faculty rights).
Scenario
User
Action
System Reaction
User clicks appropriate modify
action
Subject thread is modified accordingly.
Scenario Notes
Modify actions are: delete subject, move subject up, down, to top, to
bottom.
Post Conditions
The system is modified accordingly.
Exceptions - None.
Overview
This allows faculty to view a log of who has been
using the system, and with what frequency.
Preconditions
User is logged in (with faculty rights).
Scenario
User
Action
System Reaction
User clicks View Student
Activity
A log of student use is displayed.
Scenario Notes - None.
Post Conditions - None.
Exceptions - None.
Student Use Cases
Overview
This is the initial contact a person will have
with the system. He/she will be required to login so as to determine the rights
the person will have.
Preconditions - None.
Scenario
User
Action
System Reaction
Person connects to
site
System prompts user to login
Person enters username and password System validates user
Scenario Notes - None.
Post Conditions
User is now logged in with the appropriate rights, either as a student or
math faculty member.
Exceptions
If the login fails due to incorrect information,
the user will be prompted again.
Overview
This allows students to email professors to ask
for help.
Preconditions
User is logged in.
Scenario
User
Action
System Reaction
User clicks "email"
link
System opens
email program with the appropriate email address supplied
User writes and sends email
Scenario Notes - None.
Post Conditions
Professor will receive an email.
Exceptions - None.
Overview
This allows users to view a subject thread.
Preconditions
User is logged in.
Scenario
User
Action
System Reaction
User clicks the thread s/he wishes to
view Displays thread.
Scenario Notes - None.
Post Conditions - None.
Exceptions - None.
Overview
This allows users to view a set of practice
problems.
Preconditions
User is logged in.
Scenario
User
Action
System Reaction
User clicks "Get Practice Problems"
link Displays
practice problems
Scenario Notes - None.
Post Conditions - None.
Exceptions
More practice problems are requested than exist. In this case, as many problems as are available will be shown.
Overview
This allows users to read posts on the help forum.
Preconditions - User is logged in.
Scenario
User
Action
System Reaction
User views the help
forum
System displays the help forum.
Scenario Notes - None.
Post Conditions - None.
Exceptions - None.
Overview
This allows students to ask for help on the help
forum.
Preconditions
User is logged in.
Scenario
User
Action
System Reaction
User clicks "Ask for
Help"
Help form is displayed.
User enters help question and
submits.
Question is posted to forum
Scenario Notes - None.
Post Conditions
User post will be posted to the help forum.
Exceptions - None.
Implementation Platform
5001 Website Development Platform
- Hardware
- Windows-compatible PC
- 128 MB RAM
- 20 GB Hard Disk
- Internet connection
- Software
- Perl
- Notepad
- Internet Explorer 6.0
- Windows XP
5002 Database Development Platform
- Hardware
- Linux-compatible PC
- 128 MB RAM
- 20 GB Hard Disk
- Internet connection
- Software
- Apache 2.0.40
- PostgresSQL 7.2
- Red Hat
5011 Client Delivery Platform, Website Usage
- Hardware
- Windows-compatible PC
- 128 MB RAM
- 20 GB Hard Disk
- Internet connection
- Software
- Windows XP
- Internet Explorer
5012 Client Delivery Database Server Platform
- Hardware
- Linux-compatible PC
- 128 MB RAM
- 20 GB Hard Disk
- Internet connection
- Software
- Apache 2.0.40
- PostgresSQL 7.2
- Red Hat
Reference Materials
None.
To Do List
|
Items |
|
Requirements Issues List |
Requirements Issues List
|
Items |
|
<List of issues that the design team has with the requirements or how the design differs from the requirements - one item per table row> |
Cross-Reference Table
|
Requirements ID and Heading Name |
Design ID and Heading Name |
|
|
|
Revision History
|
Date |
Name |
Revision |
|
|
Steve Hoelle |
Initial Draft |
|
|
Steve Hoelle |
Second Draft |
|
|
Tim Jasko |
Added Data Storage/Format |
|
|
Steve Hoelle |
Cleanup, minor fixes |
|
|
Steve Hoelle |
Fleshed out Similar and Supporting Work, fixed some hyperlinks within the document. |
|
|
Steve Hoelle |
Added more detail to the Design Approach section. Addressed some formatting issues in various completed sections throughout the document. |
|
|
Steve Hoelle |
Worked on adding our Use Cases in the Detailed Design section. |
|
|
Chris Scribner |
Updated Software
Architecture, System Architecture, Detailed Design, and External Interfaces.
Removed Team Request Form section. Updated to-do list. |
|
|
|
|
