Suggestions for a Ray Tracing Spreadsheet
-
There are a number of 'series' which make up the spreadsheet
-
A line to represent the object, one to represent the image, one to represent
the lens
-
One series of lines to represent each ray
-
(Each ray will occupy two columns, one for height and one for angle)
-
Let's start with one lens, one object, one ray and one image (the
figure is a little more advanced)
-
The object will be
at x=0, an initial height of 1
-
The first ray will start out with an angle of 0
-
The lens will start out at x=20 (later, we may adjust its position with
a slider)
-
We will put labels in A5..A8 for 'object x',
'lens x', 'final x' and 'lens f'
-
'final x' denotes the x limit of our graph
-
'lens f' is the lens focal length
-
In B5..B8 we will define the appropriate cells
as 'object_x', etc.
-
Columns C and D will be devoted to the ray (C for its height y, D for its
angle)
-
In column B5..B8, enter '0', '20', and '100'
and '10'.
-
100 is the far extent of the graph
-
10 is the focal length of the lens
-
In C3 type 'Ray 1', in C4
type 'y', in D4 type 'angle'
-
In C5 enter '1', and in D5
enter '0' (the initial height and angle of ray 1)
-
C6 and D6 are
the height and angle leaving the lens
-
In C6 you would enter '=C5+D5*(lens_x-object_x)'
-
In D6 you would enter '=D5-C5/lens_f'
-
To take the ray to the final x you would fill C7 and D7:
-
In C7, it would be '=C6+D6*(final_x-lens_x)'.
In D7 it would be '=D6'
-
Now you want to plot the ray, so you drag over C5..D7
and bring up an x-y graph of this region.
-
Next, you want a series to plot the image so put the image x and y properties
in B12..C13 as shown.
-
You add the series for the image by going to a data point on the graph
and right-clicking
-
Then select Source Data
-
You add in the series so the x values are B12..B13
and the y values are C12..C13
-
(I copy the x-data for another series, then paste
it in for the new series both x and y, then correct the values)
-
Next you can add a series to show the lens. I put its values in B15..C16,
letting its top be +5 and its bottom be -5.
-
For the series to show the image you must calculate its position and height,
then put them in.
-
To introduce a second ray, you use columns E and F, starting the second
ray off with a small angle like 0.1 and of couse a height of 1. After the
first line for a new ray, you can copy and paste from the x,y values of
the old ray.
-

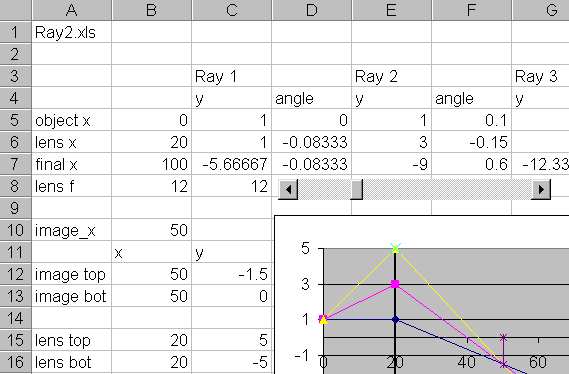

The figure shows a more advanced sheet, using a slider to adjust the focal
length of the lens.
Enhancements like sliders are desirable, because one can see the
image move around as the lens position is varied, or the lens focal length
is varied.
