Some detailed suggestions for animating a pulse in Excel

After the basic animation, any of several small enhancements can be added

a) Use Visual Basic to put in a 'button' to re-zero the time
b) Use a VB button to animate the pulse instead of having to press F9
c) Put in a slider (scroll bar) to change the width of the pulse
In cell A1 type pulse1.xls. Use this name to save the file someplace.

In cell A3 type delta_t. In cell B3 enter 0.02. Then under Insert/Name/Define set the name of the cell to delta_t

In cell A4 type t, and in cell B4 enter 0. Then name the B4 cell t just as you did for delta_t
.
Now in B4 type =t+delta_t. This is a circular reference, and if you get a message at this point, click 'Cancel'. This tells it you are ok with the circular reference.

In cell A5 type delta_x. In cell B5 then enter 0.05. For cell B5, name it  delta_x

In A6 type velocity and in cell B6 enter 2. Name B6 velocity.

The pulse function y(x,t) = A/(B+C0*(x-velocity*t)^2).
Type this in cell D3 as a reminder.

In cell A7 type A, in cell B7,enter a value of 1 and name cell B7 A.
Cell A8 is to be B. Cell B8  is to have a value 1 and be named B
Cell A9 is to be C0. Cell B9 is to have a value 1 and be named C0

Type x into cell A10, and type y into cell B10
In cell A11 enter 0. In cell A12 enter =A11+delta_x
In cell B11 enter =A/(B+C0*(A11-velocity*t)^2)

Copy cell B11 down to B12.
Copy A12..B12 down to A111..B111

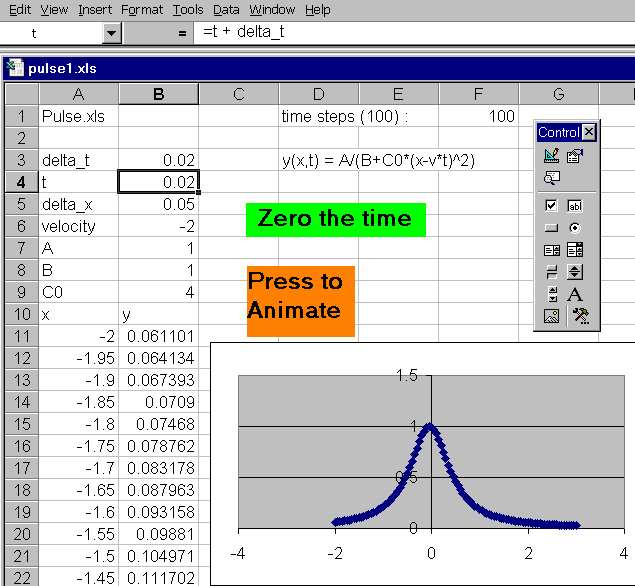

Select cells A11..B111.
Go to the Chart Wizard (in the middle of the top menu, with colored vertical bars)
        Select XY Scatter Plot, then select Data Points Connected by Smoothed Lines.
        Then click Finish, and the graph will come up.

Now you are almost ready to animate.
Under Tools/Options/Calculation check Iterations and set number of iterations to 1.
The button for Automatic calculation should be selected.
Go back to the sheet and press F9. This should increment the time and the graph should animate.

Note that you can change the pulse speed or direction in the velocity cell.


Troubleshooting
I had trouble occasionally with getting the iteration going.
It may be important to do these things in order: typing in a name in column A, then      putting in values in column B, then naming the cells in column B, and finally entering =t+delta_t

The graph may be jumpy while animating. To cure this, set the y-axis scale so it doesn't automatically re-scale. Right-click on one of the y-axis values, then select Format Axis. Select Scale and unclick Auto on both the Maximum and Minimum values.

Resetting the time to zero is annoying. One can re-enter 0 in B4, then retype =t+delta_t


Enhancements
Resetting the time by clicking on a 'label', using Visual Basic
Under View/Toolbars click Control Toolbox
A tool box will appear. It could be in the top menu bar but probably on the sheet itself.
Click the architect's triangle. This puts you in Design Mode.
Click the icon with an 'A' in it. Now drag over a rectangular area on your sheet.
The item which appears is a label, and its caption is label 1. Right-click on this label and select Properties. Under Caption, type Click to Reset Time . This gives you a new caption
Change the font to 14 point bold by going to '...' symbol when you click on font.
Change the background color by clicking there, then via the submenu select Palette, and select the color you want.
You can resize the label or move it around any time in Design Mode.
Now right-click on the label and select View Code.
This brings up an empty subroutine which will be executed when you click on that label.
In the code for the subroutine enter

Private Sub Label1_Click()
Range("t").Select
ActiveCell.value = 0
ActiveCell.Formula = "=t + delta_t"
End Sub

This will (almost) reset the time -- it resets to delta_t. Several attempts to make it perfect have not worked out.

Click the architect's triangle again to get back to Run Mode. Now you can try out the label and see if it resets the time.

Animate by clicking a label instead of pressing F9
In design mode, get yourself another label, make its caption Press to Animate, and fancy it up if you wish. Right-click, select View Code and enter the following

Private Sub Label2_Click()
Dim i As Integer
Range("F1").Select
ActiveCell.Value = 0
For i = 1 To 100
ActiveCell.Value = ActiveCell.Value + 1
Next i
End Sub

This writes a set of integers to cell F1, 100 of them. For reasons I don't understand, (probably because any change to the sheet results in automatic recalculation) 100 time steps will now be run off.

Use a scroll bar to adjust the width of the pulse.
In design mode, click on the scroll bar icon (two vertically separate triangles), then drag over a rectangular area covering two or three horizontally adjacent cells. Right-click on the scroll bar and select Properties. In Linked Cell type D8, so the value of the scroll bar will be presented in cell D8. Change Max to 100. (Scroll bar values are always integers.)
Exit design mode by clicking the architect's triangle. Now try the scroll bar (slider), dragging its value around.

Connect the values in D8 to the contents of C0:
In cell B9 (C0) type =100/D8
Now when you drag the slider around you should see the width of the pulse changing.
